The Evolution series CD drives benefit from numerous innovations in terms of power supplies or digital output stages.
The mechanics have received specific anti-vibration treatment.
- 8 mm brushed aluminium front panel.
- Linear power supply for digital stages with a specific 30 VA transformer.
- 1.6 VA transformer (low consumption).
- Specific anti-vibration treatment for CD mechanics.
- Board optimized for jitter reduction.
- Digital signal isolation by LVDS circuit (signal reformatting).
- Pure audio CD player compatible with: CD, CD-R, CD-RW, MP3, WMA-AAC.
- Original TEAC central CD mechanics (latest generation).
- Double-sided printed circuits with nickel/gold finish.
- Low-power OLED display.
- CD-Text display.
- ATOLL global remote control.

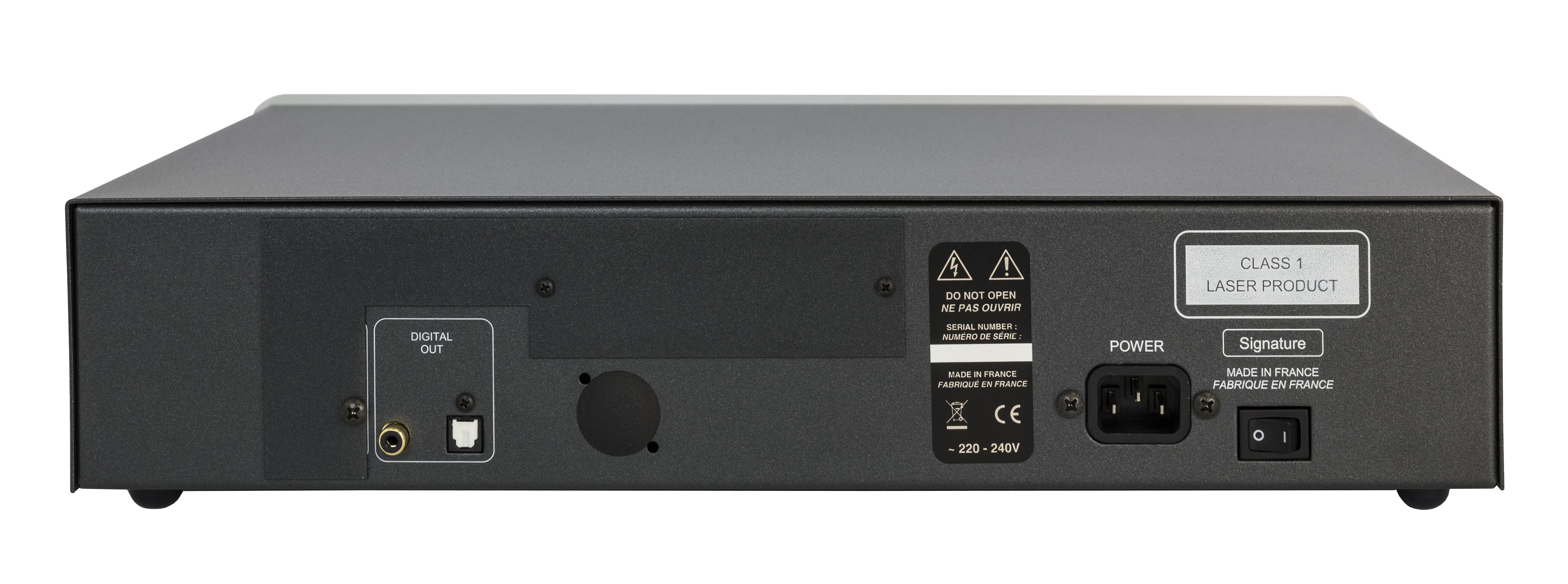

CONNECTIVITY
Outputs
1 Coaxial output on high-quality PTFE insulated connector.
1 Optical output.
1 AES/EBU output.
View the standard for XLR connector wiring.
TECHNICAL DATA
Supply: 30 + 1,6 VA
Total of capacitors: 23 000 µF
Output signal amplitude: 1 V
Standby consumption: < 0.5 W
Operating consumption: 4 to 12 W
Dimensions (mm): 440×284×95
Weight: 7 Kg
DR200 EVO DOCUMENTS
The remote control is supplied as standard on each model and allows remote control of all ATOLL products (Integrated, preamps, Tuner, DAC).
In addition, it has all the basic functions, including programming, random play, repeat, etc.
The DR200 Evolution is available in black or natural aluminium versions:
