THE PHONO PH200 PREAMP
PH200
PHONO PREAMP
The PH200 phono preamp is an external module with a specific power supply composed of 2 high-end transformers (one per channel) with very low noise and 4 voltage regulators. The whole thing is shielded by a metal box to protect against interference on the audio stages. It is entirely made of discrete components and does not include any link capacitors. The configurations (MM/MC, input impedance) are directly accessible from the rear of the chassis.
AVAILABLE OPTIONS
Mass:
- 1 Module signal output.
- 1 Deck signal input.
- Settings block (Left channel).
- Settings block (Right channel).
- 1 12V Trigger Input.
THE "ALL-IN-ONE" SDA300 SIGNATURE
THE SDA300 SIGNATURE
Streamer / DAC / Integrated Amplifier
The SDA300 Signature “All-in-one” is the new high-end, entirely amplified network player. It combines power and refinement. It is designed to bring the integrity and complexity of textures and depth to music with great fluidity. Whether you’re setting up a dedicated NAS drive, a computer music library at home, streaming over WiFi, using Bluetooth, internet radios, or even using digital or analogue inputs, all your files will be turned into music from high quality. It converts binary code to an analogue signal, preserving the integrity and joy of music.
AVAILABLE OPTIONS:
- 2 Analog inputs – 2 coaxial S/PDIF (24 bits/192 kHz PCM).
- 2 Toslink optical S/PDIF inputs (24 bits/192 kHz PCM).
- 2 USB-A inputs (1 front and 1 rear).
- “Gapless” system (no cut between pieces).
- Qobuz, Tidal Connect, Deezer, Spotify, ROON, and HRA compatibility.
- Live streaming online.
- Internet radio (over 100,000 Internet Radio stations).
- Standard remote control.

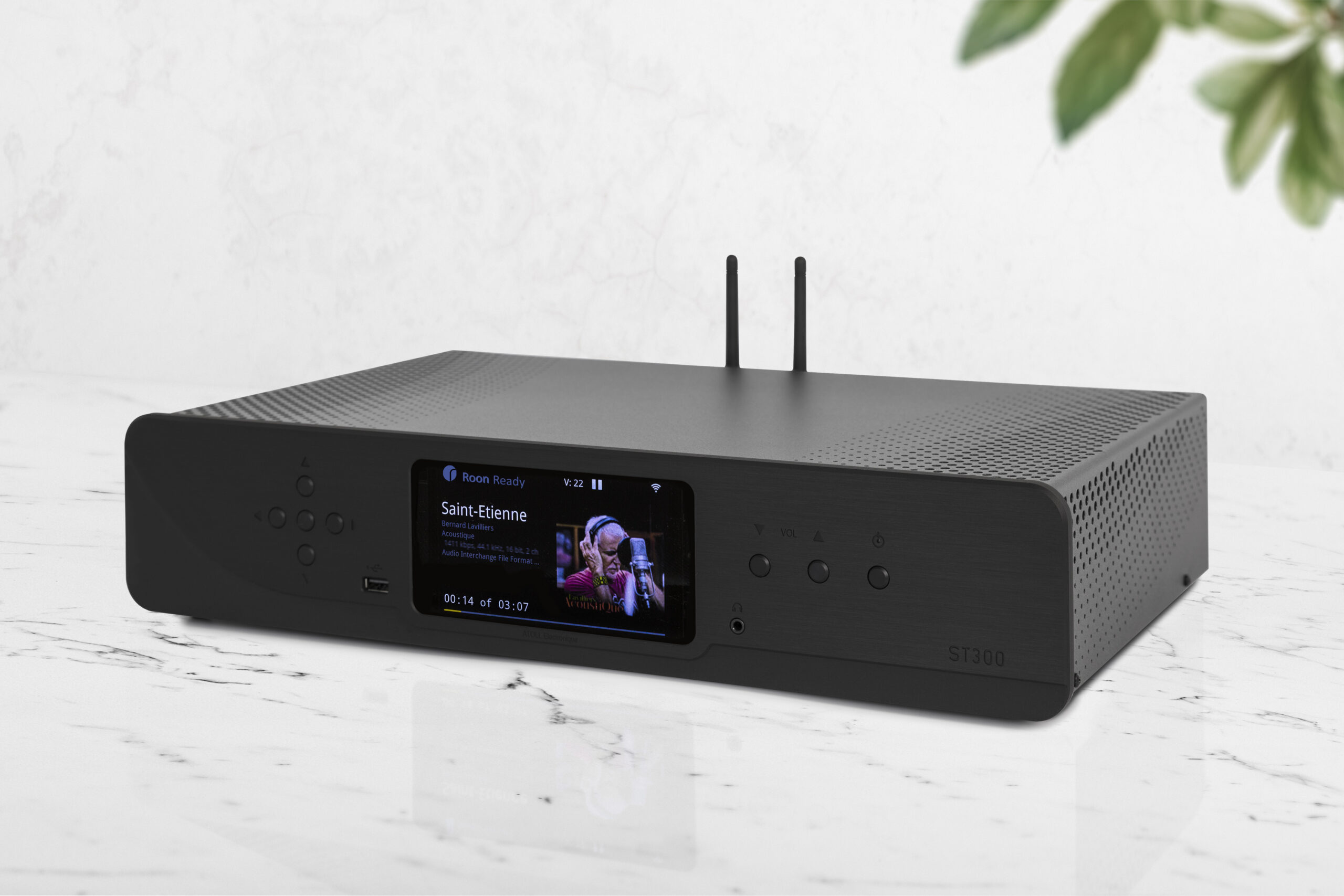

THE ST300 SIGNATURE STREAMER
THE ST300 SIGNATURE
Whether it’s listening to music in high definition streaming, locally from your network, from a USB key, a hard drive, via Bluetooth®, or your favourite internet radios, our ST300 Signature network player is adapted to the current needs related to the reading of dematerialized music files. It embeds a high-performance converter and can be used as a pure source or preamplifier. You also have direct access to these streaming services: Qobuz, Tidal, Tidal Connect, Deezer, Spotify, and HighResAudio from the application. During the first use, you must enter your username and password. Once your account is valid, you can access all the services linked to your account.
AVAILABLE OPTIONS:
- 2 Analog inputs – 2 coaxial S/PDIF (24 bits/192 kHz PCM).
- 2 Toslink optical S/PDIF inputs (24 bits/192 kHz PCM).
- 2 USB-A inputs (1 front and 1 rear).
- “Gapless” system (no cut between pieces).
- Qobuz, Tidal Connect, Deezer, Spotify, ROON, and HRA compatibility.
- Live streaming online.
- Internet radio (over 100,000 Internet Radio stations).
- Standard remote control.

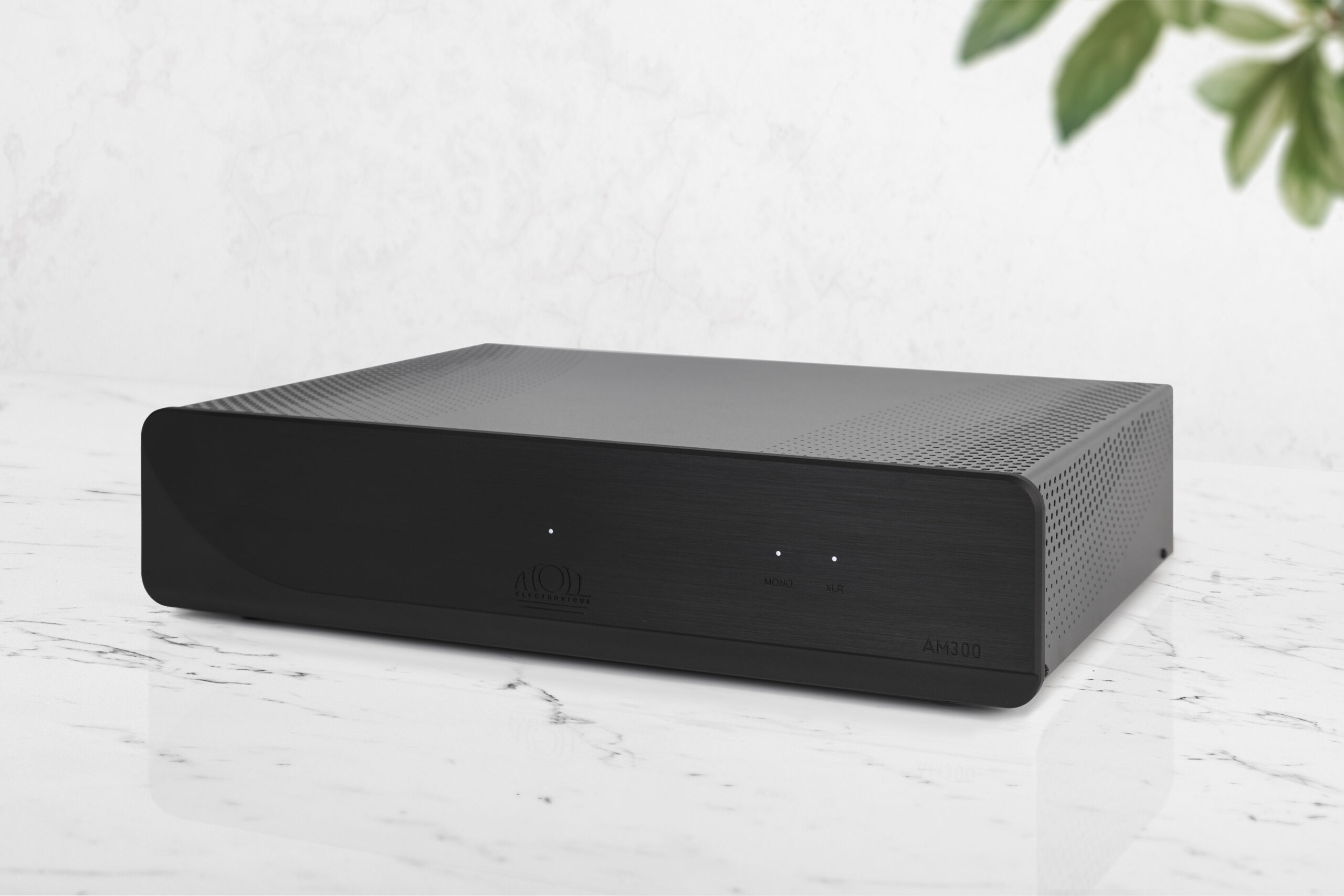

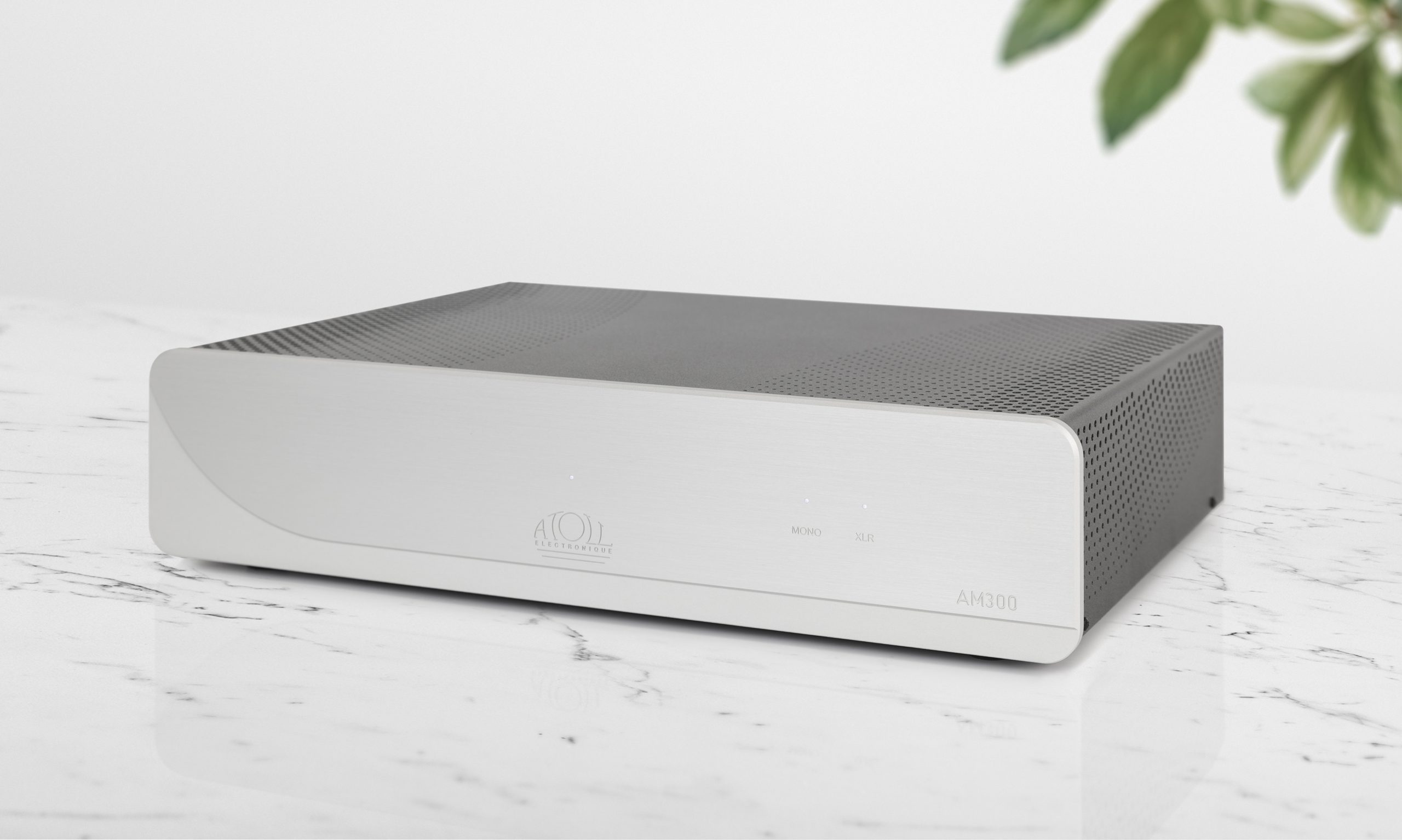

THE AM300 POWER AMPLIFIER
THE AM300 BLOCK
The power amplifier AM300 block is suitable for most HIFI or audio-video applications. Very scalable, it can be used alone or in bi-amplification. It can be paired with an ATOLL-integrated amplifier or preamplifier. It is bridgeable in a monoblock via an internal switch. It is equipped as standard with a 12V Trigger input (direct ignition in conjunction with a preamp).
AVAILABLE OPTIONS:
- 8 mm brushed aluminium front.
- Power of 2×150 Wrms / 8Ω.
- 2 toroidal transformers of 440 VA each.
- Filtering capacitors: 8×6800 μF high quality, low ESR specific for ATOLL.
- MOS-FET triple push-pull power stage.
- 6 MOS-FET power transistors per channel.
- Balanced XLR and RCA line inputs.
- Balanced discrete component audio stages.
- Integral dual mono architecture.
- Polarization of output stages in class A/B.
- Double-sided circuit boards with nickel/gold finish.
- Monoblock bridgeable.
- 12V Trigger input.
THE SIGNATURE SERIES
The following products evolve into the Signature series:
- The IN50 – IN80 – IN100 integrated units, the PR200 preamp, and the AM100 amp.
- CD50 – CD80 – CD100 – DR100 players.
- The Tuner TU80.
THE INTEGRATED IN50-80-100, THE PREAMPLIFIER PR200 AND THE POWER AMPLIFIER AM100 CONVERTED INTO "SIGNATURE VERSION"
The original diagram of these devices has been carefully revised to improve musicality and connectivity. The quality of several features and components have also been enhanced: the double-sided nickel/gold circuit board, link capacitors, heatsinks, thermal protection, and more.
Furthermore, the improvements in the new versions allow adding a digital board (two to choose from) and a phono board.
AVAILABLE OPTIONS:
- Atoll remote control.
- Silver finish (no extra charge).
- Phono board (optional): P50 (MM) / P100 (MM and MC).
- Digital board (optional):
– S/PDIF board: 2 Coaxial + 2 Optical.
– NUM board 2 Optical, 2 Coaxial, 1 USB, 1 Bluetooth (same as IN200 Sig).
SIGNATURE SERIES
TECHNICAL DATA
IN50 Sig
IN80 Sig
IN100 Sig
AM100 Sig
PR200 Sig
Power:
Pulse power:
Power supply:
Total capacitive:
Weight:
50 W /ch. /8Ω
70 W /ch. /4Ω
90 W /ch.
170 VA
17 874 µF
7 Kg
80 W /ch. /8Ω
120 W /ch. /4Ω
150 W /ch.
340 VA
31 474 µF
8 Kg
100 W /ch. /8Ω
140 W /ch. /4Ω
180 W /ch.
2×340 VA
31 474 µF
11 Kg
100 W /ch. /8Ω
140 W /ch. /4Ω
180 W /ch.
2×340 VA
32 247 µF
11 Kg
–
–
–
340 VA
31 918 µF
8 Kg
NB: Models PR100se – AM50se – AM80se are discontinued.
CD PLAYERS, DRIVE PLAYERS AND THE TUNER IN THE SIGNATURE VERSION
THE CD PLAYERS
ATOLL introduces Signature versions of 50-80-100 CD players.
Still equipped with pure CD TEAC mechanics, this range incorporates elements developed on the CD200 Signature: linear power supplies and audio stages with discrete components. It is equipped with a low-consumption OLED display. The ATOLL global remote control (CD, Amp, Tuner, DAC) is delivered as standard.
AVAILABLE OPTIONS:
- 1 Digital input board:
– 1 Coaxial input.
– 1 Optical input.
– 1 24 bits/192 bits asynchronous USB input (idem to CD200 Sig).
THE DR100 SIGNATURE DRIVE
The DR100 “Drive” reader is also available in the Signature series. It incorporates elements of the DR200 Signature:
- Linear feeding principles.
- Isolation of digital signals.
- Mechanical processing.
- The ATOLL global remote control (CD, Amp, Tuner, DAC) is delivered as standard.
- Coaxial and optical S/PDIF digital outputs.
THE TUNER FM TU80 SIGNATURE
The TU80 evolves into the Signature Series so that it can perfectly combine with the other elements of the Signature Series.
AVAILABLE OPTIONS:
- Features a high-precision receiving head.
- Allows automatic display of station names.
- It features an automatic SCAN, MONO/STEREO function, and the ability to save up to 20 stations.
SIGNATURE SERIES
TECHNICAL DATA
CD50 Sig
CD80 Sig
CD100 Sig
DR100 Sig
TU80 Sig
Power supply:
Total of capacitors:
Output level:
Signal/noise ratio:
Converter:
Raising time:
Weight:
30+4,6 VA
8 192 µF
2,5 Vrms
113 dB
PCM1793
2,0 µs
6 Kg
30+4,6 VA
12 892 µF
2,5 Vrms
113 dB
PCM1793
2,0 µs
6 Kg
30+10 VA
13 032 µF
2,10 Vrms
123 dB
PCM1796
2,0 µs
6 Kg
30 VA
4 142 µF
–
–
–
–
6 Kg
30+4,6 VA
6 798 µF
2,0 Vrms
58 dB (stéréo)
–
2,5 µs
7 Kg
